On-edge Machine for Cream Sandwiches
This model suitable to pack Cream Sandwiches and special shaped biscuits/cookies standing On-edge (vertical) style without any tray.
Speed of the machine ranging from 80 packs per minute to 180 packs per minute.
Different Models of On-edge Machine for Cream Sandwiches.
This Models are highly versatile, reliable, flexible in change over and easy in maintenance.
Line Solution ( Connect Upstream line with Wrapping machine )

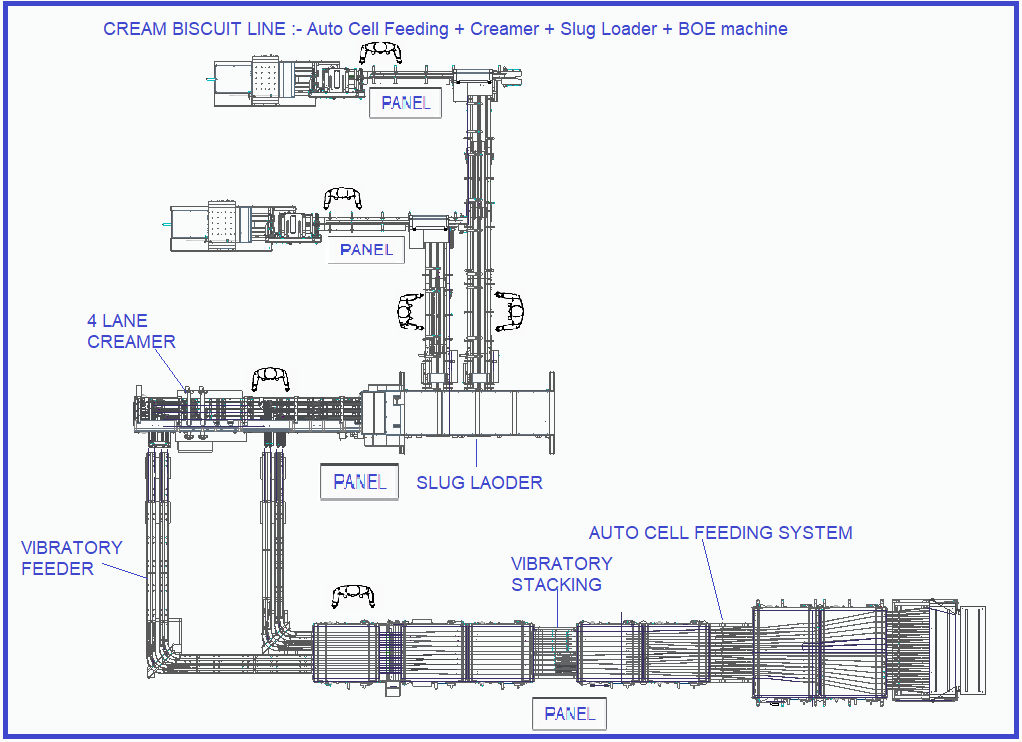

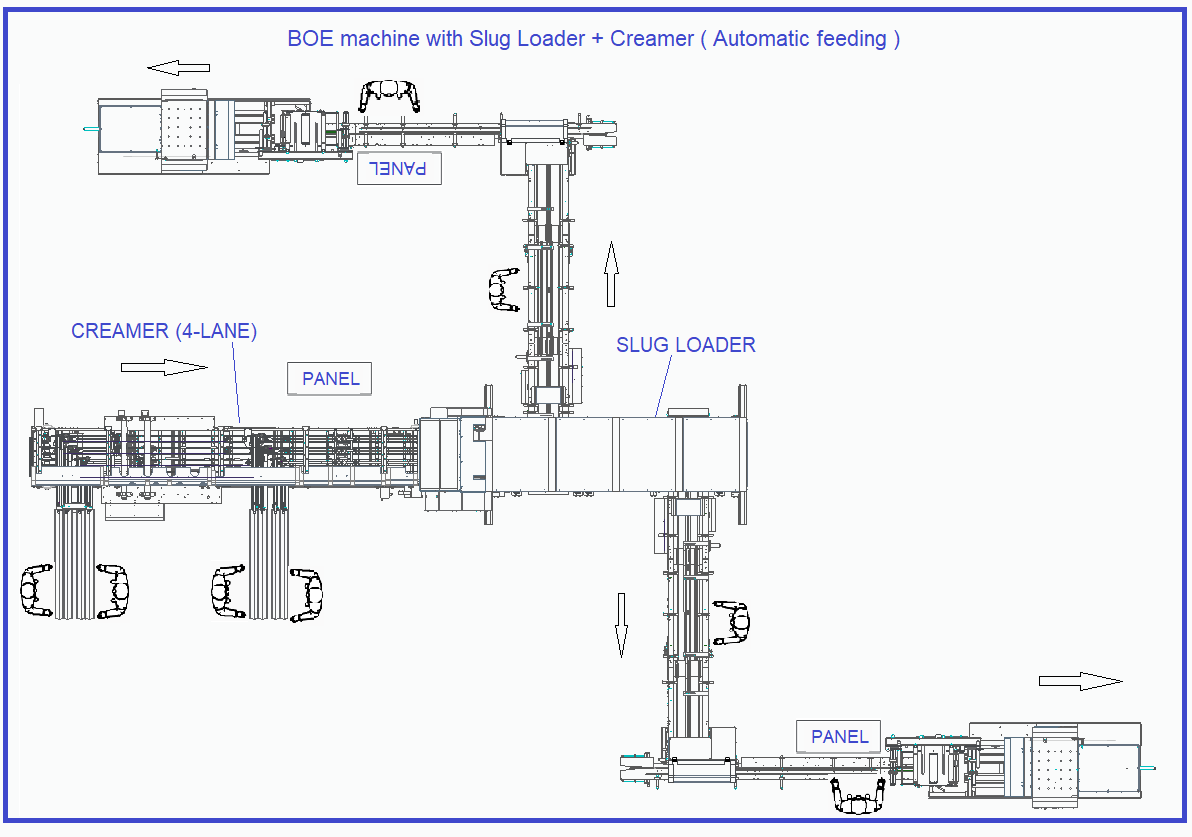

- After receiving dry cell on cooling conveyor, FWT offer Auto shell feeding system Consist of, Dribble board, Star wheel stacker, Packing table, Merging conveyor, ,Vibratory feeding system connect Multiple creaming machine according to line capacity. Post to creamer, Sulg loader with 2 or 3 packing machine. Drawing

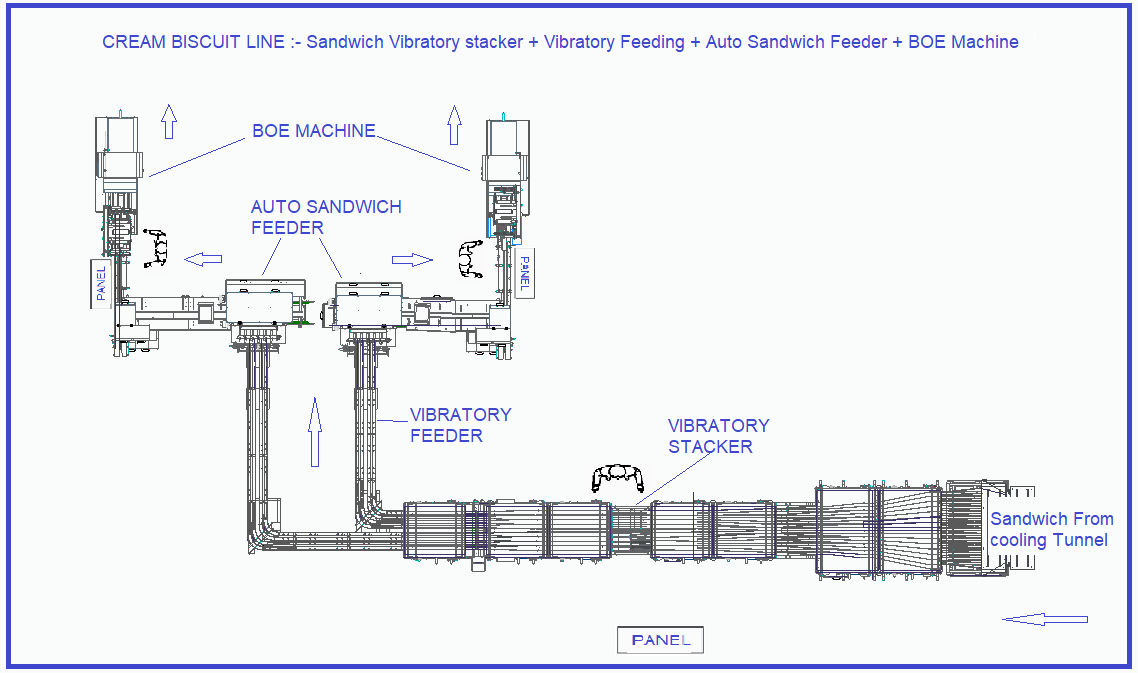

- After receiving stacked sandwich from cooling conveyor , FWT offer packing table , vibratory feeding system connect to multiple packing machine with auto sandwich feeder Drawing

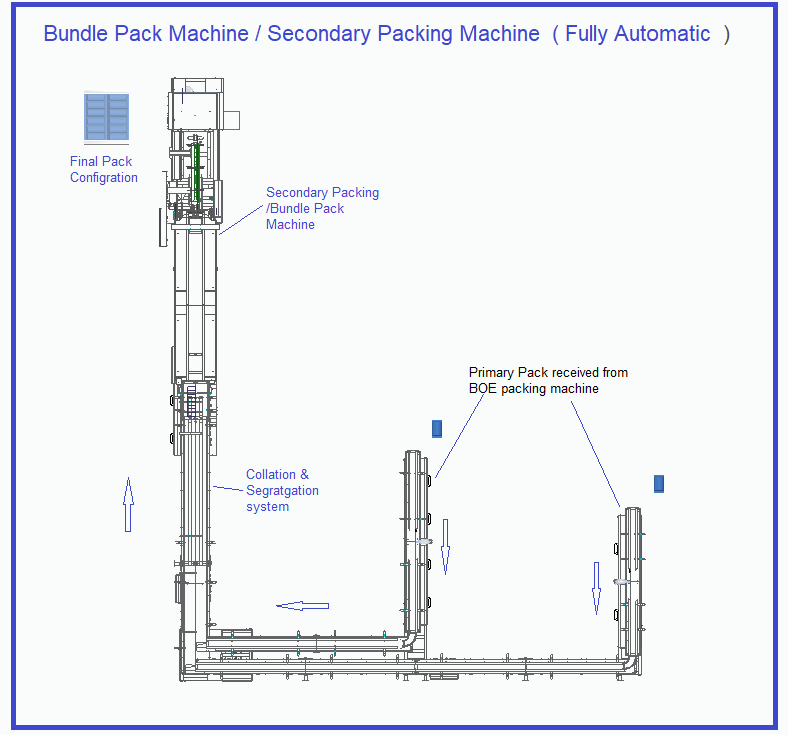

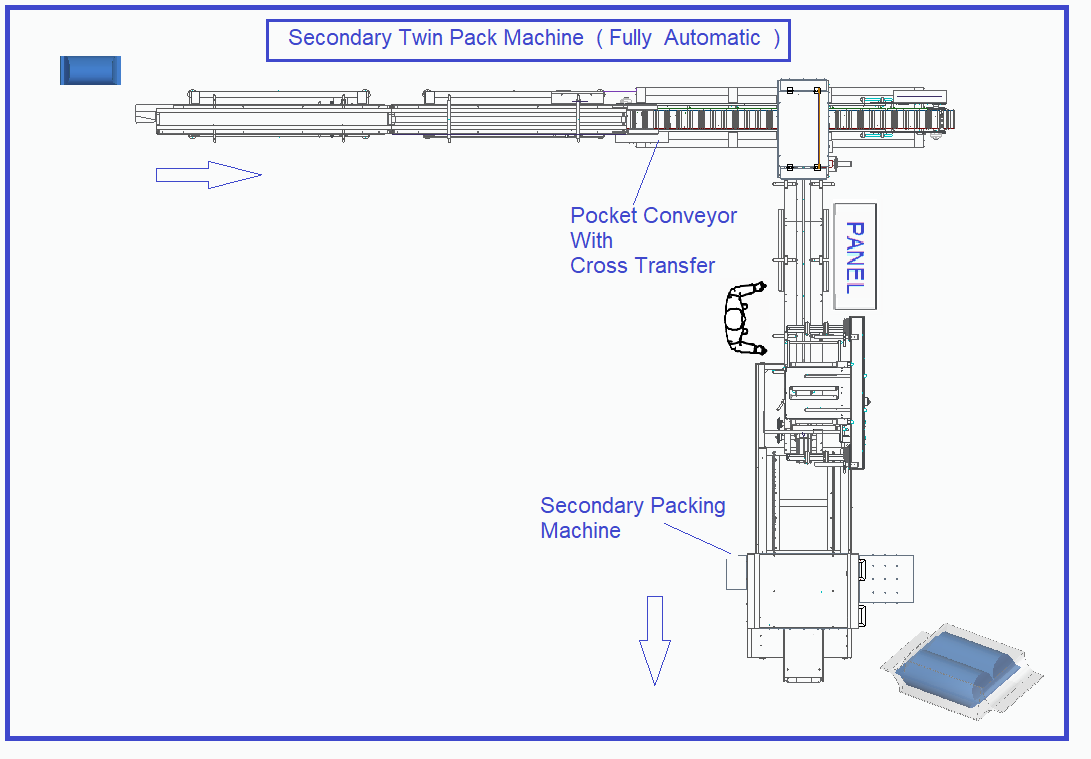

End Line Solution
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Servo driven machine.
- Repeat length adjustment thru HMI.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Electronic Dwell
- Twin Sealing Jaws.
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Special arrangement for ending Lateral chain before sealing jaws.
- Empty, Joint and Spliced pack rejection
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- PLC with IoT SCADA
TECHNICAL DETAILS
| Product Length/Diameter | 30mm - 70mm |
| Product Width/Diameter | 30mm - 70mm |
| Stack length | 50mm - 200mm |
| Cut off length | 85mm - 280mm |
| Inside core diameter of laminate roll | 76 mm |
| Maximum outside diameter of laminate roll | 300mm |
| Maximum weight of laminate roll | 20 Kgs |
| Maximum width of laminate roll | 280 mm |
| Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
| Power Supply | 380/415 Volts, 50/60Hz |
| Approximate machine size | 7.0m length x 1.8m width x 2.0 m height |
| Approximate machine weight | 1800 Kgs |
